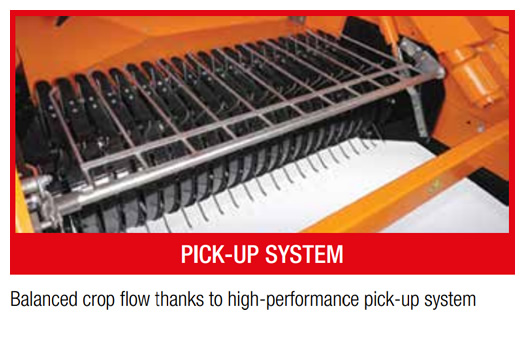

• Balanced crop flow thanks to a high performance collection system.
• With large and heavy flywheel, balanced and regular power distribution.

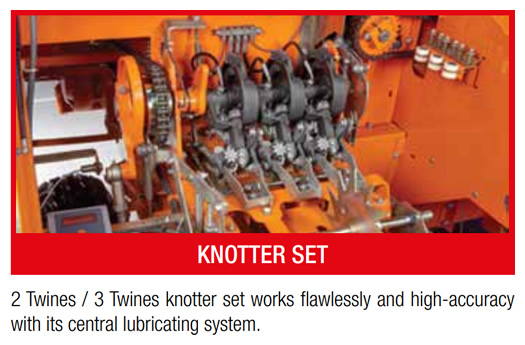

• The sets of knotters with 2 or 3 twines work continuously and with great precision thanks to the central lubrication system.
• Large twine box for uninterrupted productivity.

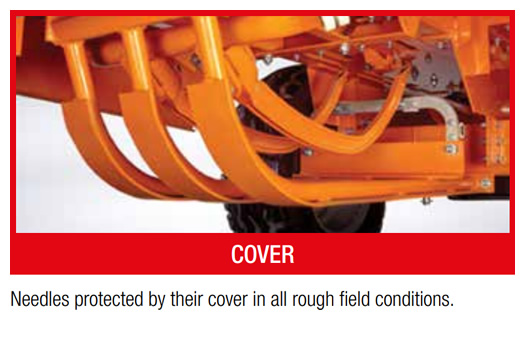

• Needles protected by their cover in all difficult ground conditions.
• The knotter assembly is clean and operational all the time with the performance of the ventilation system.

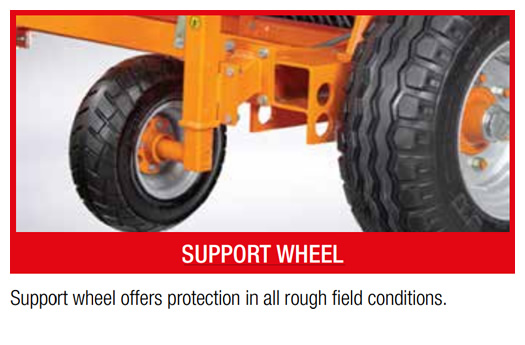

• Support wheels provide protection in all difficult terrain conditions.

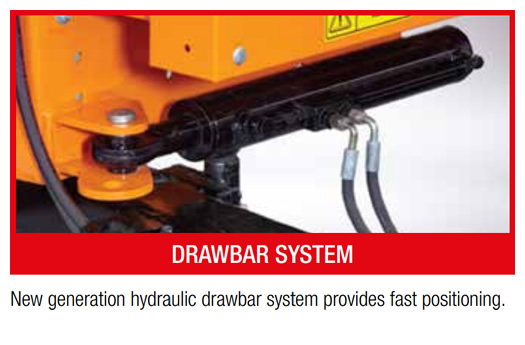

• New generation hydraulic drawbar system allows quick positioning.
• Electronic bale counter.
| MODEL | ALP-690 | ALP-790 |
|---|
| PICK-UP SYSTEM | | |
| Width (mm) | 1800 | 1800 |
| Bar Gap (mm) | 70 | 70 |
| Number of Tines (pcs.) | 110 | 110 |
| BALE CHAMBER | | |
| Stroke (mm) | 730 | 730 |
| Piston Speed (stoke/min.) | 92 | 92 |
| Feeder Window (cm²) | 1570 | 1570 |
| BALE SPECIFICATIONS | | |
| Bale Dimensions (mm) | 360 x 460 | 360 x 460 |
| Bale Length (mm) | 300 - 1350 | 300 - 1350 |
| Bale Weight (kg) | 20-35 | 20-35 |
| Productivity (bale/hour) | 200 | 200 |
| Knotter set | 2 twines | 3 twines |
| TRANSPORT DIMENSIONS | | |
| Weight (kg) | 2220 | 2238 |
| Baler Length (on road) (mm | 5530 | 5530 |
| Baler Length (on duty) (mm) | 6380 | 6380 |
| Baler Width (mm) | 2550 | 2550 |
| Baler Height (mm) | 1870 | 1870 |
| Power Requirement | 50-60 | 50-60 |
| PTO Drive | 540 | 540 |
| Transmission | 2 shafts | 2 shafts |
