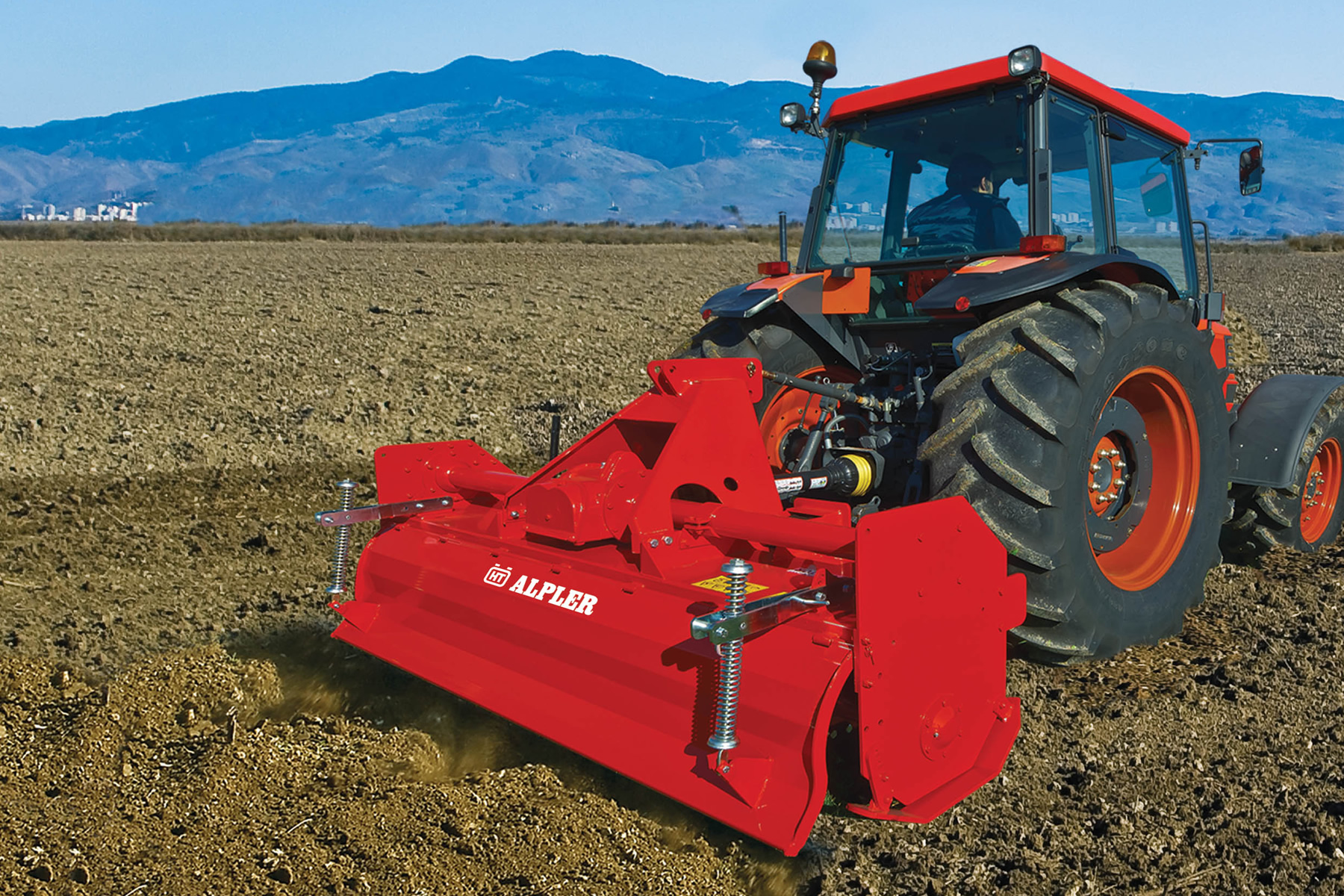

> It is a multi-directional machine, which may easily be used in many procedures such as cultivating soil, seed bed preparation, stubble-ploughing etc. in your field by its strong structure.
> It prevents foot stone formation by setting off the soil by means of its special ripper feet; thus it provides formation of the most appropriate texture for plant root development and plant nutrition.

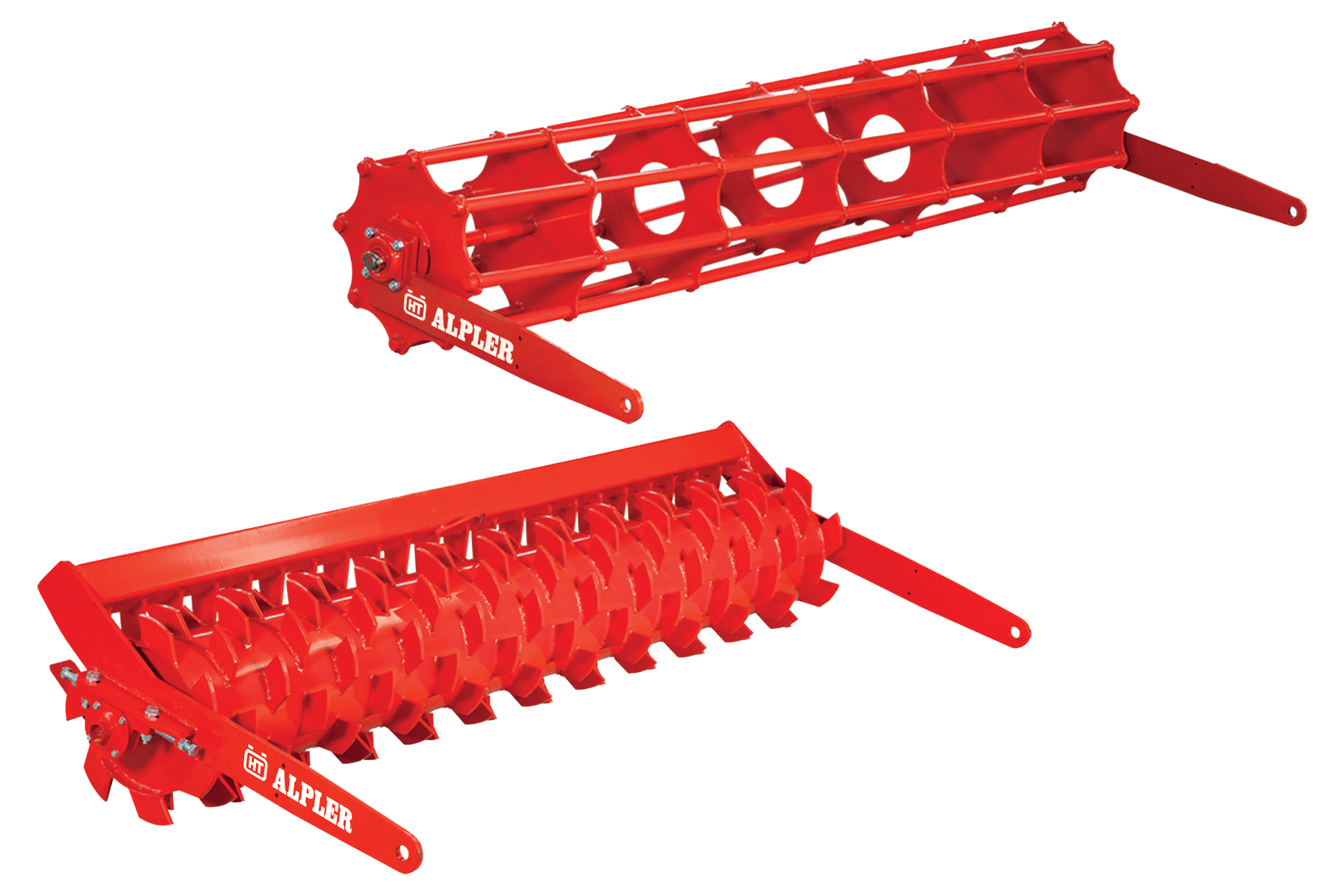

> It prevents removal of mellowness of soil as it vaporizes by applying pressure onto the soil cultivated by means of optional light and heavy mangle.
> It is an environmentally friendly machine by providing humus increase by organic fertilizer through mixing post-harvest plant residues into the soil.
> It takes movements from power take-off by variable-speed transmission (540, 750 or 1000 cycle/ min.). It allows changing rotation speed of blades in many different options with replaceable gears within the gearbox and it provides efficient fragmentation and mixing procedure.
> It saves on time and fuel oil.
| MODEL | A-TSR 1200 | A-TSR 1500 | A-TSR 1800 | A-TSR 2000 | TA-TSR 2300 | TA-TSR 2500 |
|---|---|---|---|---|---|---|
| Working width (mm) | 1260 | 1514 | 1768 | 2022 | 2240 | 2495 |
| Working Depth (cm) | 220 | 220 | 220 | 220 | 220 | 220 |
| Overall Width (mm) | 1516 | 1770 | 2024 | 2278 | 2570 | 2825 |
| Overall Height (mm) | 1100 | 1100 | 1100 | 1100 | 1100 | 1230 |
| Number of Flanges (pieces) | 6 | 7 | 8 | 9 | 10 | 11 |
| Number of Horizontal Blades (pieces) | 30 | 36 | 42 | 48 | 54 | 60 |
| Number of Vertical Blades (pieces) | 36 | 44 | 52 | 60 | 68 | 76 |
| P.T.O. Shaft Rotations (max) (min-1) | 540 | 540 | 540 | 540 | 540 | 540 |
| Weight (kg) | 390 | 420 | 455 | 490 | 760 | 850 |
| Power Requirement (HP) | 30-35 | 35-40 | 40-45 | 45-50 | 55-65 | 70-75 |
| MODEL | A-TDSR 1500 | A-TDSR 1800 | A-TDSR 2000 | A-TDSR 2300 | A-TDSR 2500 | |
| Working Width (mm) | 1514 | 1768 | 2022 | 2240 | 2495 | |
| Working Depth (cm) | 220 | 220 | 220 | 220 | 220 | |
| Overall Width (mm) | 1790 | 2044 | 2298 | 2590 | 2825 | |
| Overall Height (mm) | 1200 | 1200 | 1200 | 1230 | 1230 | |
| Number of Flanges (pieces) | 7 | 8 | 9 | 10 | 11 | |
| Number of Horizontal Blades (pieces) | 36 | 42 | 48 | 54 | 60 | |
| Number of Vertical Blades (pieces) | 44 | 52 | 60 | 68 | 76 | |
| P.T.O. Shaft Rotations (max) (min-1) | 540 | 540 | 540 | 540 | 540 | |
| Weight (Kg) | 575 | 600 | 665 | 785 | 880 | |
| Power Requirement (HP) | 50-55 | 55-60 | 60-65 | 70-75 | 75-80 |
Rotary Tiller Brochure
