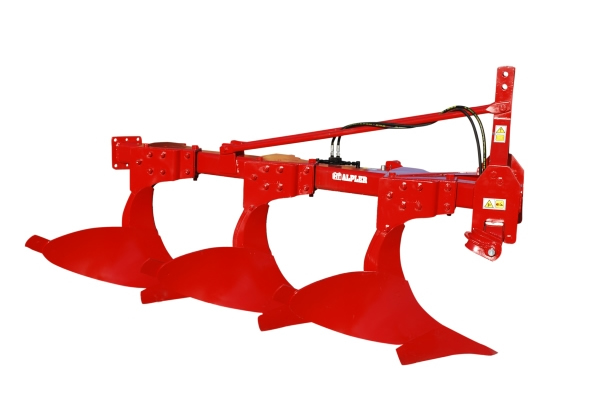

> Three positions Mechanically (Standard) or infinitely variable hydraulic working width adjustment from tractor seat (Optional).
> Optional bolt safety system.
> Various accessories and body types for different needs.
> Flanged frame to add an extension, if required.
> Box section top quality steel frame construction. 120x120 mm standard (PSP), 100x100mm light model (PSPH) and 140x140 mm heavy model (PSPA)

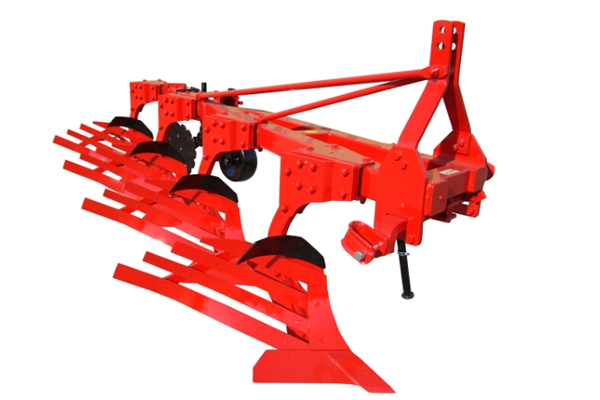

> Trash boards
> Shares with Reversible Points
> Mouldboard Extension
> Skimmer
> Deflector
> Slatted Body
> Wing Coulter
> Shear Bolt Safety
> Disc Coulters
> Metal Depth Wheel
> Bar Point Body
> Metal depth Wheel
> F, X and V Type Mouldboard
| MODEL | PSP08 | PSP09 | PSP10 | PSP12 | PSP14 | PSP16 | PSP18 |
|---|---|---|---|---|---|---|---|
| Clearence (cm) | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| Distance Between Beams (cm) | 75 | 75 | 75 | 75 | 80 | 85 | 85 |
| Working Width (cm) | 18-20-22,5 | 20-22,5-25 | 22,5-25-27,5 | 25-30-35 | 30-35-40 | 35-40-45 | 40-45-50 |
| Working Depth (cm) | 20 | 22 | 24 | 26 | 28 | 30 | 32 |
| Weight (kg) 2 | 339 | 353 | 359 | 365 | 371 | 377 | 383 |
| Weight (kg) 3 | 490 | 510 | 520 | 530 | 540 | 550 | 560 |
| Weight (kg) 4 | 650 | 667 | 676 | 687 | 700 | 710 | 730 |
| Weight (kg) 5 | 760 | 785 | 790 | 800 | 825 | 860 | 895 |
| Weight (kg) 6 | 900 | 950 | 960 | 975 | 990 | 1020 | 1050 |
| Power Requirement (HP) 2 | 40-45 | 40-45 | 45-50 | 45-50 | 50-55 | 55-50 | 60-70 |
| Power Requirement (HP) 3 | 45-50 | 45-50 | 50-55 | 50-55 | 50-55 | 70-80 | 75-85 |
| Power Requirement (HP) 4 | 60-70 | 60-70 | 70-75 | 70-75 | 75-80 | 75-80 | 80-90 |
| Power Requirement (HP) 5 | 70-80 | 70-85 | 80-90 | 80-90 | 90-100 | 100-110 | 110-120 |
| Power Requirement (HP) 6 | 80-90 | 90-100 | 100-110 | 110-125 | 125-135 | 135-145 | 145-160 |
Upon the needs of customers we keep the right to make changes on the product specifications.
