• Thanks to the ALP 520’s perfect in-line design, there is no road / duty position to change.
• The knotter assembly is clean and operational all the time with the performance of the ventilation system.

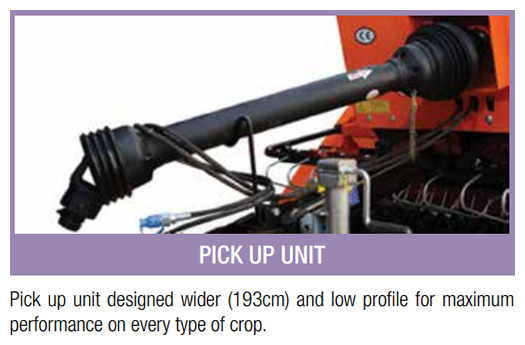

• Wider (193cm), low profile designed collection unit for maximum performance on all types of crops.

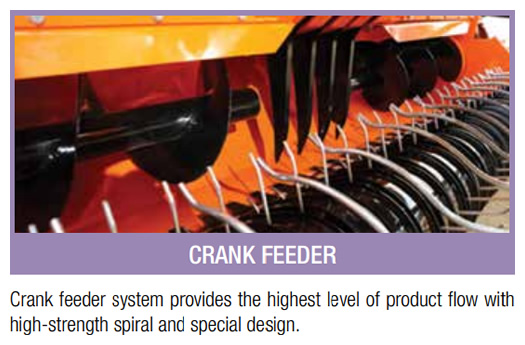

• Hand crank feed system provides the highest level of product flow with high strength spiral and special design.

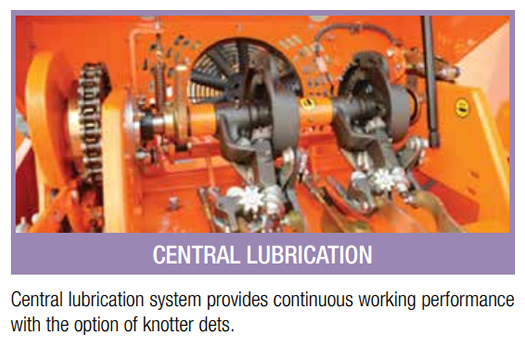

• Centralized lubrication system provides continuous working performance with the option of knotter sets.

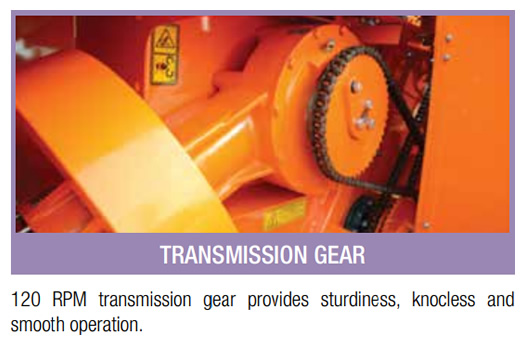

• 120 RPM transmission gear provides strength, smooth and smooth operation.
• Suitable for large diameter twine rolls by five on both sides, durable and continuous work.
• Support wheel for stable work even in the most difficult conditions.
| MODEL | ALP-520 |
|---|
| PICK-UP SYSTEM | |
| Width (mm) | 1930 |
| Bar Gap (mm) | 60 |
| Number of Tines (pcs.) | 112 |
| BALE CHAMBER | |
| Stroke (mm) | 550 |
| Piston Speed (stoke/min.) | 120 |
| Feeder Window (cm²) | 1410 |
| BALE SPECIFICATIONS | |
| Bale Dimensions (mm) | 360 x 460 |
| Bale Length (mm) | 300 - 1350 |
| Bale Weight (kg) | 20-35 |
| Productivity (bale/hour) | 280 |
| Knotter set | 2 twines |
| TRANSPORT DIMENSIONS | |
| Weight (kg) | 1850 |
| Baler Length (on road) (mm | 4650 |
| Baler Length (on duty) (mm) | 5570 |
| Baler Width (mm) | 2600 |
| Baler Height (mm) | 1820 |
| Power Requirement | 45 |
| PTO Drive | 540 |
| Transmission | 1 shaft |
