| MODEL | SDD-A 19 | SDD-A 21 | SDD-A 23 | SDD-A 27 | SDD-A 31 |
|---|---|---|---|---|---|
| Distance Between Rows (mm) | 130 | 130 | 130 | 130 | 130 |
| Working Width (mm) | 2470 | 2730 | 2990 | 3510 | 4030 |
| Handling Width (mm) | 2785 | 3035 | 3285 | 3830 | 4156 |
| Handling Height (mm) | 1600 | 1600 | 1600 | 1600 | 1600 |
| Handling Length (mm) | 2480 | 2480 | 2480 | 2480 | 2480 |
| Seed Tank Volume (lt) | 330 | 360 | 390 | 480 | 510 |
| Fertiliser Tank Volume (lt) | 310 | 340 | 370 | 450 | 480 |
| Tank w/o Fertiliser Vol (lt) | 640 | 700 | 760 | 930 | 1000 |

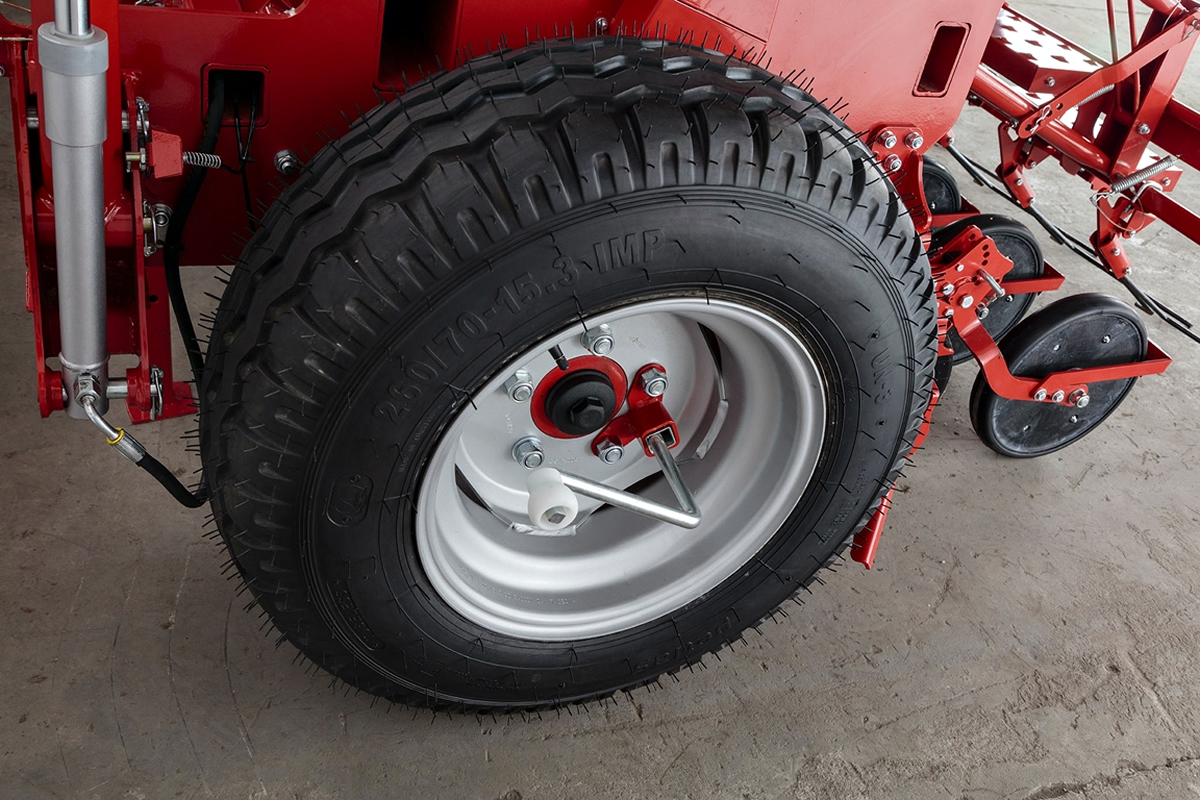

| Tire Size | 600/16 | 600/16 | 600/16 | 7.0/15.3 | 7.0/15.3 |
| Operating Speed (km/h) | 5-7 | 5-7 | 5-7 | 5-7 | 5-7 |
| Weight (kg) | 1160 | 1210 | 1320 | 1640 | 1790 |
| Power Requirement (kw) | 60-70 | 70-80 | 80-90 | 90-100 | 100-110 |
| Power Requirement (HP) | 60+ | 70+ | 80+ | 100+ | 120+ |
Seed Drill Double Disc User Guide
