> Time savings and reduced fuel consumption.
> Three positions Mechanically (Standard) or infinitely variable hydraulic working width adjustment from tractor seat (Optional).
> Ease and speed of set-up into the work/transport position.
> For optimum use of engine power, tractor inter-tire distance adjustment (Optional)
> Optional bolt safety system.
> Various accessories and body types for different needs.
> Flanged frame to add an extension, if required.
> Ease and simple adjustments for the best tractor adaptations.
> Trash boards
> Shares with Reversible Points
> Mouldboard Extension
> Skimmer
> Deflector

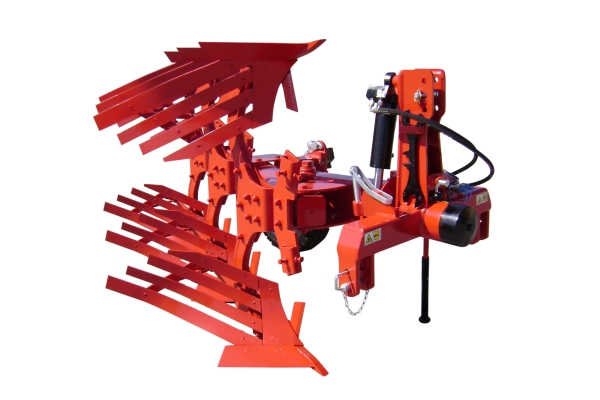

> Slatted Body
> Wing Coulter
> Shear Bolt Safety
> Disc Coulters
> Bar Point Body
> Metal depth wheel
> Swinging Depth & Transport wheel
> F, X and V Type Mouldboard
| MODEL | DPH08 | DPH09 | DPH10 | DPH12 | DP12 | DP14 | DP16 | DP18 |
|---|---|---|---|---|---|---|---|---|
| Clearence (cm) | 70 | 70 | 70 | 70 | 75 | 75 | 75 | 75 |
| Distance Between Beams (cm) | 75 | 75 | 75 | 75 | 80 | 80 | 85 | 85 |
| Working Width (cm) | 18-20-22,5 | 20-22,5-25 | 22,5-25-27,5 | 27,5-30-32,5 | 25-30-35 | 30-35-40 | 35-40-45 | 40-45-50 |
| Working Depth (cm) | 20 | 22 | 24 | 26 | 26 | 28 | 30 | 32 |
| Weight (kg) 2 | 577 | 583 | 589 | 595 | 700 | 704 | 710 | 716 |
| Weight (kg) 3 | 740 | 745 | 750 | 760 | 840 | 860 | 875 | 890 |
| Weight (kg) 4 | 900 | 940 | 980 | 1020 | 1100 | 1120 | 1140 | 1170 |
| Weight (kg) 5 | 1005 | 1020 | 1050 | 1070 | 1270 | 1320 | 1340 | 1355 |
| Power Requirement (HP) 2 | 45-50 | 45-50 | 50-55 | 50-55 | 55-60 | 65-70 | 80-85 | 80-90 |
| Power Requirement (HP) 3 | 50-55 | 50-55 | 55-60 | 60-70 | 60-70 | 60-70 | 80-85 | 80-90 |
| Power Requirement (HP) 4 | 70-80 | 70-80 | 80-85 | 80-90 | 80-90 | 85-90 | 85-90 | 90-110 |
| Power Requirement (HP) 5 | 80-90 | 80-90 | 90-100 | 90-110 | 90-110 | 90-110 | 100-120 | 120-130 |
Upon the needs of customers we keep the right to make changes on the product specifications.
