> Capable of tackling tough scraping projects.
> Heat treated reversible and replaceable cutting edge.
> Single or dual depth control tires for precision grading (Optional).
> Standard parking stand for easy mounting and safety.
> Easy offset, angle and blade rotation adjustment.
| MODEL | TKH 200 | TKH 250 | TKH 300 | TK 200 | TK 250 | TK 300 |
|---|---|---|---|---|---|---|
| Working Width (cm) | 200 | 250 | 300 | 300 | 300 | 300 |
| Scraper Height (cm) | 70 | 70 | 70 | 70 | 70 | 70 |

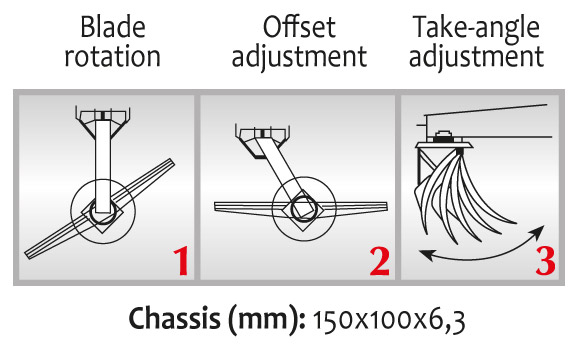

| Blade Rotation (1) | Hydroulic | Hydroulic | Hydroulic | Mechanic | Mechanic | Mechanic |
| Offset Adjustment (2) | Hydroulic | Hydroulic | Hydroulic | - | - | - |
| Take-Angle Adjustment (3) | Mechanic | Mechanic | Mechanic | - | - | - |
| Weight (kg) | 720 | 760 | 800 | 455 | 500 | 545 |
| Power Requirement (HP) | 40-60 | 50-70 | 60-80 | 40-60 | 50-70 | 60-80 |
Rear Blade User Guide
