> Manual or Hydraulic (optional) mechanism for shifting the disc harrow easily closer to the trees and fences.

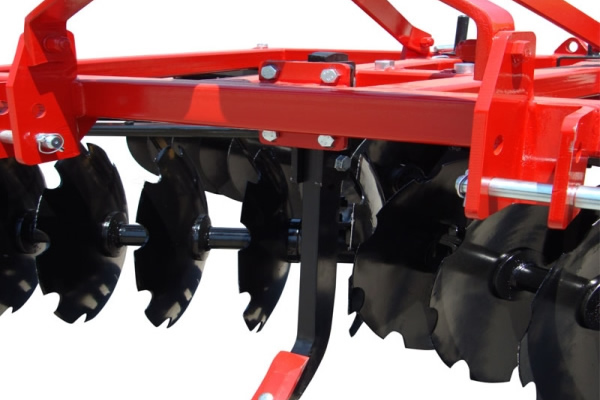

> Spacers and bearing housings made from steel for trouble free long working life High resistible, heat treated discs notched at front and plain at rear or alternated. Easy gang angling adjustment with locking device.
> Increased inter-disc spacing and disc scrapers preventing trash built up.
| MODEL | AXD20-460 | AXD24-460 | AXD28-460 | AXD32-460 | AXD36-460 | AXD20-510 | AXD24-510 | AXD28-510 | AXD32-510 | AXD36-510 |
|---|---|---|---|---|---|---|---|---|---|---|
| Number of Discs (pieces) | 20 | 24 | 28 | 32 | 36 | 20 | 24 | 28 | 32 | 36 |
| Disc Diameter (mm) | 460 | 460 | 460 | 460 | 460 | 510 | 510 | 510 | 510 | 510 |
| Disc Spacing (cm) | 19 | 19 | 19 | 19 | 19 | 19 | 19 | 19 | 19 | 19 |
| Working Width (cm) | 190 | 228 | 266 | 304 | 342 | 190 | 228 | 266 | 304 | 342 |
| Working Depth (cm) | 10 | 10 | 10 | 10 | 10 | 15 | 15 | 15 | 15 | 15 |
| Weight (kg) | 620 | 665 | 750 | 800 | 840 | 650 | 700 | 790 | 840 | 880 |
| Power Requirement (HP) | 45-55 | 55-65 | 65-75 | 75-85 | 85-100 | 50-60 | 60-70 | 70-80 | 80-100 | 100-120 |
Mounted X Type Tandem Disc Harrow Brochure
