> Zero, single or double slope working options.
> Box section top quality steel frame construction.
> Special heat treated steel double side share with unique design to get the most convenient penetration angle for maximum efficiency.

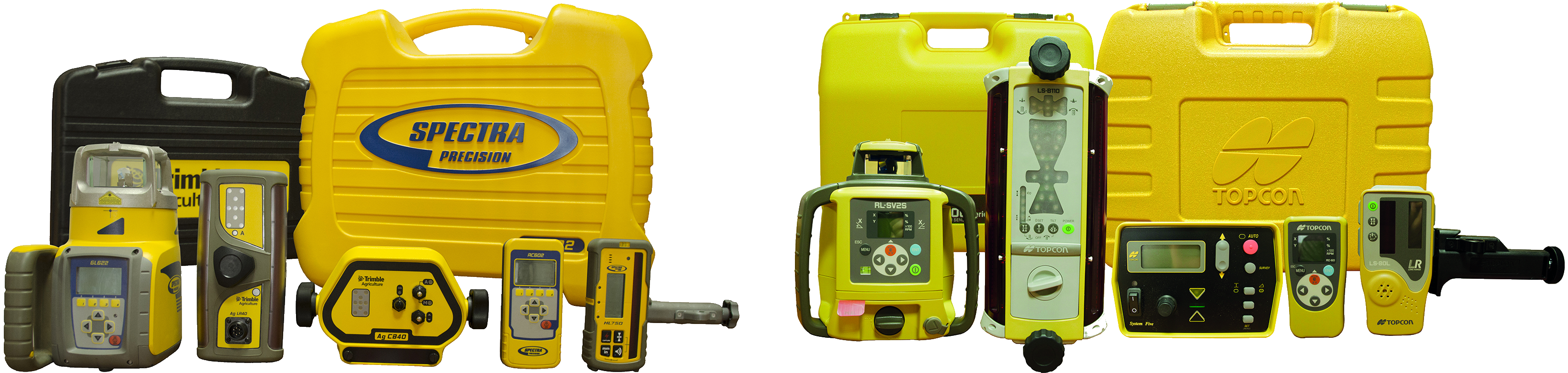

> Rugged design laser equipment are built to be strong and job-site tough. The mechanical / optical unit is mounted in sealed water proof aluminum housing, in fact the laser will run if submerged 3 m.
> The housing has an integrated handle for ease of handling.
> Operating instructions booklet and movie (English).
| MODEL | LTM 250 A | LTM 300 A | LTM 300 | LTM 350 | LTM 400 | LTM 450 | LTM 500 | LTM 550 | LTM 600 |
|---|---|---|---|---|---|---|---|---|---|
| Transport Width (m) | 2,5 | 3 | 2,5 | 2,5 | 2,5 | 3 | 3 | 3,5 | 3,5 |
| Working Width (m) | 2,5 | 3 | 3 | 3,5 | 4 | 4,5 | 5 | 5,5 | 6 |
| Overall Length (m) | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5,5 |
| Weight (kg) | 1800 | 1950 | 2350 | 2400 | 2450 | 2500 | 2550 | 2700 | 3500 |
| Power Requirement (HP) | 70-90 | 90-110 | 90-110 | 100-110 | 110-120 | 110-135 | 135-160 | 160-180 | 180-200 |
Laser Controlled Leveler Machine User Guide
