> Accurate spread pattern.

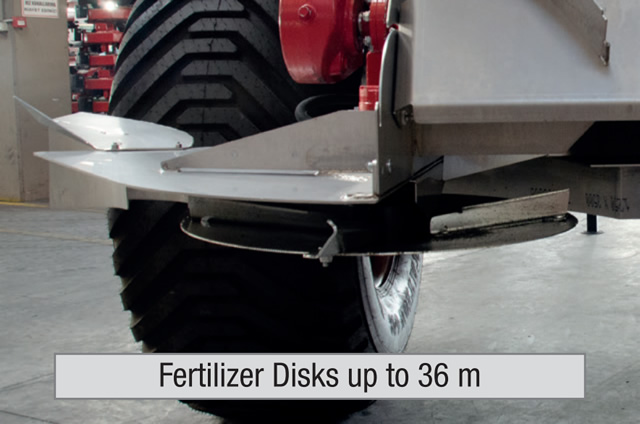

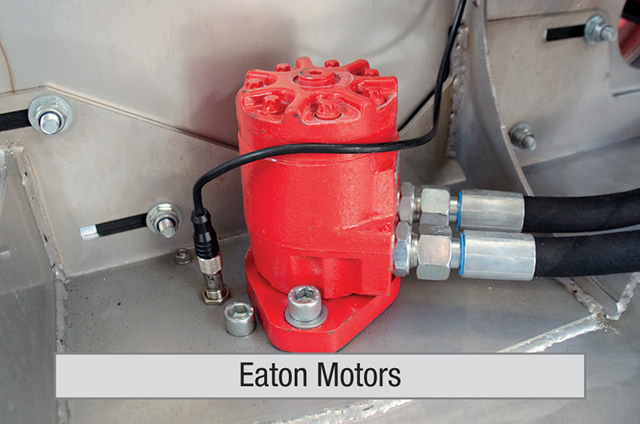

> Hydraulic control spinners and multiple drop point adjustment ensuring accurate spreading.

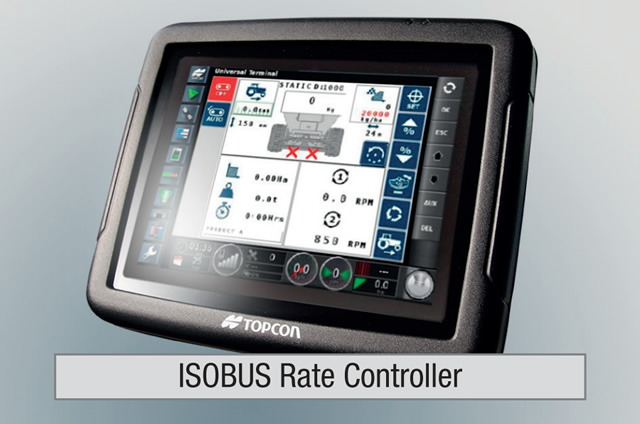

> Hydraulic drive machines are VRT ready (Variable Rate Technology) and compatible with most GPS systems.

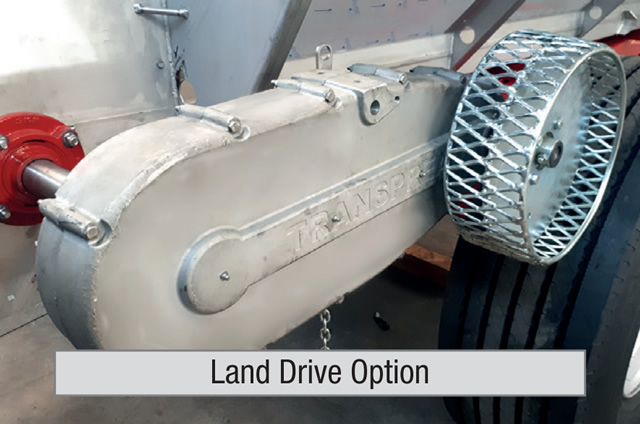

> Simple and easy to operate ground drive or hydraulic drive machines.
> Alpler load cells ensure accurate spreading.
> Ability to customise machine to customer requirements.
> Stainless spreading deck and stainless wearing parts were required. All nuts/bolts were required are stainless steel.
> A commitment to develop products to customer requirements and beyond.
| MODÈLE | GSR 3 | GSR 4 Horticulture | GSR 4 L | GSR 5 Horticulture | GSR 5 L | GSR 6 | GSR 8 | GSR 10 | GSR 11 |
|---|---|---|---|---|---|---|---|---|---|
| CU. Capacity | 2,5 | 3,5 | 3,2 | 4,6 | 4 | 4,8 | 6 | 7,9 | 9 |
| Tonage Fertiliser | 3 | 4,5 | 4 | 5,5 | 5 | 5,76 | 7,25 | 9,5 | 11 |
| Tonage Lime | 3,5 | 5 | 4,5 | 6,4 | 5,6 | 6,72 | 8,4 | 11 | 12,5 |
| Bin Length (mm) | 2000 | 2400 | 2400 | 2400 | 3000 | 2400 | 3000 | 3000 | 3000 |
| Bin Width (mm) | 1800 | 1800 | 2000 | 1800 | 2000 | 2250 | 2250 | 2250 | 2250 |
| Bin Height (mm) | 1080 | 960 | 1055 | 960 | 1055 | 1320 | 1320 | 1630 | 1630 |
| Conveyor Drive | Ground Wh. | Ground Wh. | Ground Wh. | Ground Wh. | Ground Wh. | Ground Wh. | Ground Wh. | Ground Wh. | Ground Wh. |
| Tyres | 12.5/80x15.3 | 400/60x15.5 | 400/60x15.5 | 400/60x15.5 | 14.9x24 | 16.5/85x24 | 16,9 X 28 | 23.1x26 | 23.1x26 |
| Single or Tandam | Single | Single | Single | Single | Single | Single | Single | Single | Single |
| Hyd Brakes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Removable Drawbar | No | No | No | No | No | No | No | Yes | Yes |

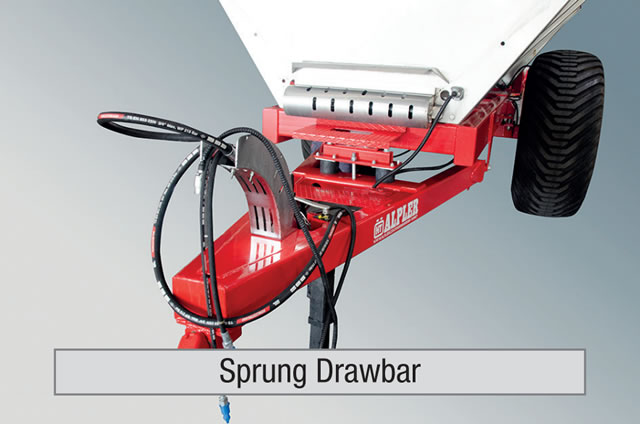

| Sprung Drawbar | No | No | No | No | No | No | No | No | No |
| Adjustable DB height | No | No | No | Single | Single | Single | Single | Single | Single |
| Ground Drive 3 Speed | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Tachometer | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Floor Feed Width (mm) | 730 | 730 | 730 | 730 | 730 | 730 | 730 | 730 | 730 |
| Wheel Option | 400/60x15.3 | 11x22.5 | 11x22.5 | 14.9x24 | 11x22.5 | 11x22.5 | x | x | x |
| Axle Track | 1700 | 1700 | 1700 | 1700 | 1700 | 2000 | 2000 | 2000 | 2250x2950 |
| Square (mm) | 70 | 70 | 70 | 70 | 70 | 90 | 90 | 90 | 140x14 |
| Stubs | 6 | 6 | 6 | 6 | 6 | 10 | 10 | 10 | 10 |
| Production Material | Mild or Stainless Steel | Mild or Stainless Steel | Mild or Stainless Steel | Mild or Stainless Steel | Mild or Stainless Steel | Mild or Stainless Steel | Mild or Stainless Steel | Mild or Stainless Steel | Mild or Stainless Steel |
| Load Cells | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional |
| Computer ISO | Optional | Optional | Optional | Optional | Standard | Standard | Standard | Standard | Standard |
| Display | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Standard | Optional |
| Ground Drive 3 Speed | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| Computer (Hydrolic Drv) | Optional | Optional | Optional | Standard | Standard | Standard | Standard | Standard | Standard |
| Roll Tarp. | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| Independent Hyd. Kit | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard |

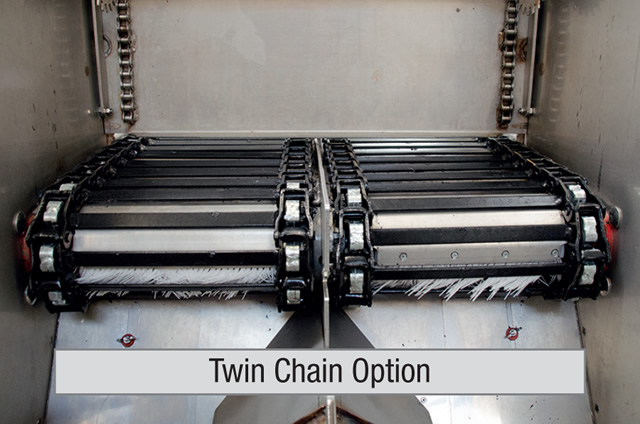

| Twin Chain Section Ctrl. | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional |
| Tandem | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional |
| MODÈLE | GSR 10 C | GSR 11 C | GSR 13 | GSR 15 | GSR 16 | GSR 20 | GSR 22 | ||
| CU. Capacity | 9 | 9 | 10,8 | 12,7 | 12,7 | 16 | 17,6 | ||
| Tonage Fertiliser | 11 | 11 | 12,5 | 15 | 15 | 20 | 22 | ||
| Tonage Lime | 12,5 | 12,5 | 15 | 18 | 18 | 22,5 | 24,7 | ||
| Bin Length (mm) | 3000 | 3000 | 4000 | 4000 | 5000 | 5000 | 6000 | ||
| Bin Width (mm) | 2250 | 2250 | 2250 | 2250 | 2250 | 2250 | 2250 | ||
| Bin Height (mm) | 1630 | 1832 | 1630 | 1832 | 1630 | 1630 | 1832 | ||
| Conveyor Drive | Computer | Computer | Section Con | Section Con | Section Con | Section Con | Section Con | ||
| Tyres | 23.1x26 | 23.1x26 | 650/75Rx32 | 650/75Rx32 | 600/55Rx26,5 | 600/55Rx26,5 | 600/55Rx26,5 | ||
| Single or Tandam | Single | Single | Single | Single | Tandam | Tandam | Tandam | ||
| Hyd Brakes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | ||
| Removable Drawbar | Yes | Yes | Yes | Yes | Yes | Yes | Yes | ||
| Sprung Drawbar | No | No | Yes | Yes | Yes | Yes | Yes | ||
| Adjustable DB height | Single | Single | Single | Single | Single | Single | Single | ||
| Ground Drive 3 Speed | No | No | No | No | No | No | No | ||
| Tachometer | No | No | No | No | No | No | No | ||
| Floor Feed Width (mm) | 730 | 730 | 730 | 730 | 730 | 730 | 730 | ||
| Wheel Option | x | x | 650/65x30.5 | ||||||
| Axle Track | 2250x2950 | 2250x2950 | 2250x2950 | 2250x2950 | 2250x2950 | 2250x2950 | 2250x2950 | ||
| Square (mm) | 140 x 14 | 140 x 14 | 150 x 14 | 150 x 14 | 150 x 14 | 150 x 14 | 150 x 14 | ||
| Stubs | 10 | 10 | 10 | 10 | 10 | 10 | 10 | ||
| Production Material | Mild or Stainless Steel | Mild or Stainless Steel | Mild or Stainless Steel | Mild or Stainless Steel | Mild or Stainless Steel | Mild or Stainless Steel | Mild or Stainless Steel | ||
| Load Cells | Optional | Optional | Standard | Standard | Standard | Standard | Standard | ||
| Computer ISO | Standard | Standard | Standard | Standard | Standard | Standard | Standard | ||
| Display | Standard | Standard | Standard | Standard | Standard | Standard | Standard | ||
| Ground Drive 3 Speed | Optional | Optional | Optional | Optional | Optional | Optional | Optional | ||
| Computer (Hydrolic Drv) | Optional | Optional | Optional | Optional | Optional | Optional | Optional | ||
| Roll Tarp. | Standard | Standard | Standard | Standard | Standard | Standard | Standard | ||
| Independent Hyd. Kit | Standard | Standard | Standard | Standard | Standard | Standard | Standard | ||
| Twin Chain Section Ctrl. | Optional | Optional | Standard | Standard | Standard | Standard | Standard | ||
| Tandem | Optional | Optional | Optional | Optional | Standard | Standard | Standard |
