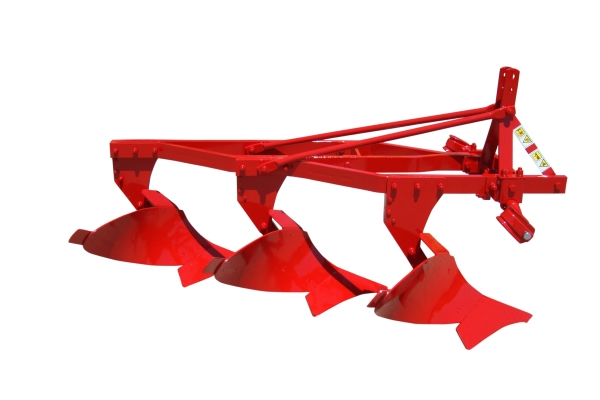

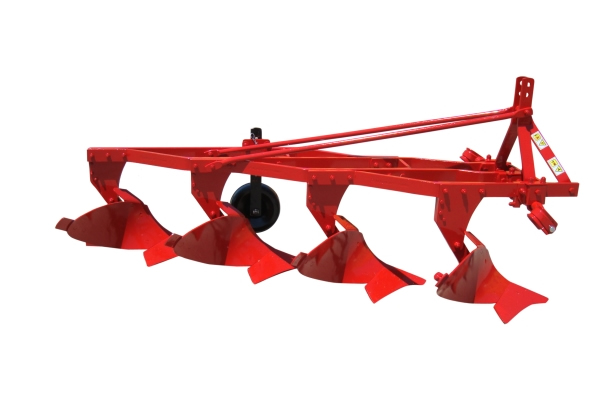

> PP ploughs are equipped with bolt safety system preventing any damage on the tractor and on the plough caused by overloading.
> High resistible frame construction.
> Easy and quick replacement of the cracked bolt to allow work to continue.
> Cheapest solution for fields with few obstacles.
> Trash boards
> Mouldboard Extension
> Deflector
> Slatted Body
> Shares with Reversible Points
> Metal Depth Wheel
> Bar Point Body
> Disc Coulters
> Shares with Reversible Points
> F, X and V Type Mouldboard
| MODEL | PP08 | PP09 | PP10 | PP11 | PP12 | PP13 | PP14 | PP16 |
|---|---|---|---|---|---|---|---|---|
| Clearence (cm) | 60 | 60 | 66 | 66 | 66 | 66 | 66 | 66 |
| Distance Between Beams (cm) | 58 | 59 | 67 | 67 | 72 | 72 | 76 | 76 |
| Working Width (cm) | 23,5 | 24,5 | 25,5 | 27,5 | 30 | 32,5 | 35 | 37,5 |
| Working Depth (cm) | 20 | 22 | 24 | 24 | 26 | 28 | 28 | 30 |
| Weight (kg) 2 | 200 | 205 | 215 | 226 | 230 | 235 | 240 | 255 |
| Weight (kg) 3 | 258 | 265 | 327 | 335 | 347 | 350 | 361 | 376 |
| Weight (kg) 4 | 386 | 390 | 502 | 517 | 520 | 528 | 540 | 555 |
| Weight (kg) 5 | 475 | 493 | 630 | 635 | 660 | 671 | 702 | 720 |
| Weight (kg) 6 | 585 | 620 | 765 | 775 | 780 | 825 | 840 | 865 |
| Power Requirement (HP) 2 | 20-25 | 30-40 | 30-40 | 30-40 | 40-50 | 40-50 | 40-50 | 50-60 |
| Power Requirement (HP) 3 | 30-40 | 45-50 | 45-50 | 50-55 | 55-60 | 55-60 | 60-70 | 70-80 |
| Power Requirement (HP) 4 | 40-50 | 50-60 | 70-80 | 70-85 | 70-85 | 70-85 | 80-90 | 80-90 |
| Power Requirement (HP) 5 | 50-60 | 60-70 | 80-90 | 85-95 | 90-100 | 90-100 | 90-110 | 100-110 |
| Power Requirement (HP) 6 | 65-75 | 70-80 | 80-90 | 90-110 | 95-115 | 105-120 | 110-125 | 125-135 |
Upon the needs of customers we keep the right to make changes on the product specifications.
Conventional Plough With Bolt Safety Brochure
