> Economical solution for stony, rooted, and aggressive soil conditions.
> Cost reduction with use of high resistant bar point comparing to plain share.
> By pushing the bar point forward, getting "first day use plowing quality".
> Trash boards
> Mouldboard Extension
> Deflector
> Slatted Body
> Wing Coulter
> Metal Depth Wheel
> Disc Coulters
| MODEL | KP08 | KP09 | KP10 | KP11 | KP12 | KP13 | KP14 | KP16 |
|---|---|---|---|---|---|---|---|---|
| Clearence (cm) | 64 | 65 | 65 | 65 | 65 | 65 | 65 | 70 |
| Distance Between Beams (cm) | 59 | 62 | 70 | 71 | 76 | 77 | 79 | 82 |
| Working Width (cm) | 23,5 | 24,5 | 25,5 | 27,5 | 30 | 32,5 | 35 | 37,5 |
| Working Depth (cm) | 20 | 22 | 24 | 24 | 26 | 28 | 28 | 30 |
| Weight (kg) 1 | 134 | 165 | 175 | 178 | 180 | 184 | 195 | 215 |
| Weight (kg) 2 | 192 | 230 | 255 | 250 | 260 | 265 | 268 | 306 |
| Weight (kg) 3 | 275 | 337 | 360 | 365 | 377 | 390 | 400 | 466 |
| Weight (kg) 4 | 408 | 500 | 545 | 555 | 576 | 580 | 586 | 675 |
| Weight (kg) 5 | 573 | 705 | 708 | 711 | 715 | 730 | 752 | 850 |
| Power Requirement (HP) 1 | 25-30 | 30-35 | 30-35 | 35-40 | 40-50 | 40-50 | 45-50 | 50-60 |
| Power Requirement (HP) 2 | 35-40 | 40-45 | 40-45 | 45-50 | 45-50 | 45-50 | 50-60 | 60-70 |
| Power Requirement (HP) 3 | 40-45 | 45-50 | 50-60 | 60-70 | 60-70 | 70-80 | 70-80 | 80-90 |
| Power Requirement (HP) 4 | 60-65 | 60-70 | 70-80 | 70-85 | 70-85 | 80-85 | 85-95 | 90-100 |
| Power Requirement (HP) 5 | 70-80 | 70-80 | 85-90 | 90-100 | 90-100 | 90-100 | 100-110 | 110-120 |
Upon the needs of customers we keep the right to make changes on the product specifications.

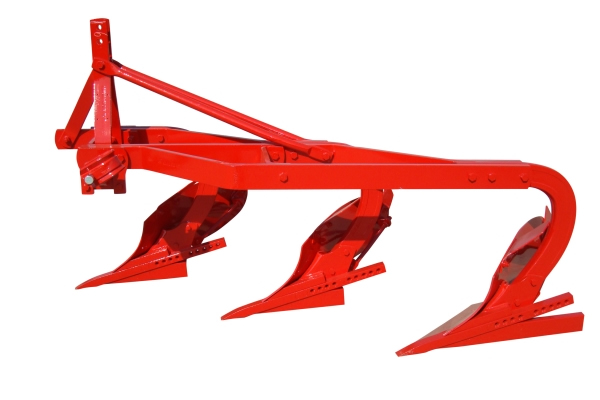

Conventional Plough With Bar Point Brochure
