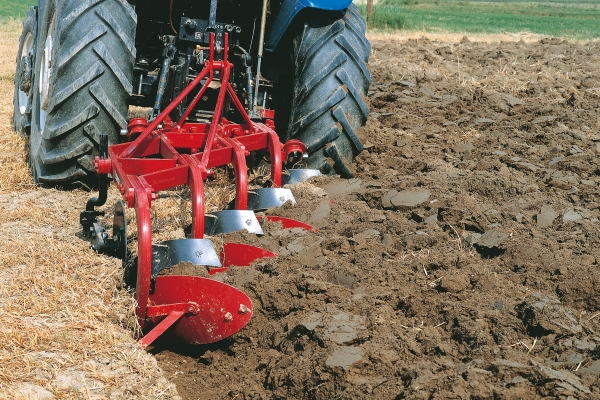

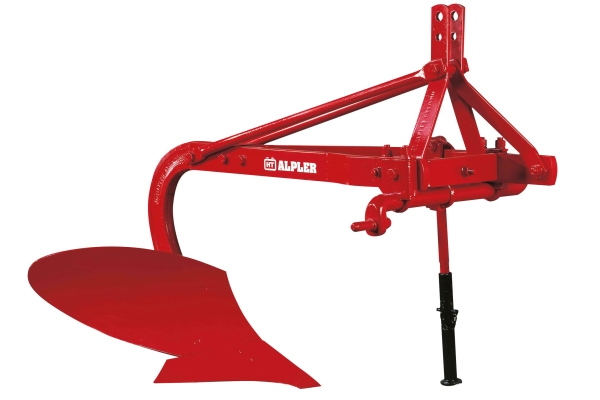

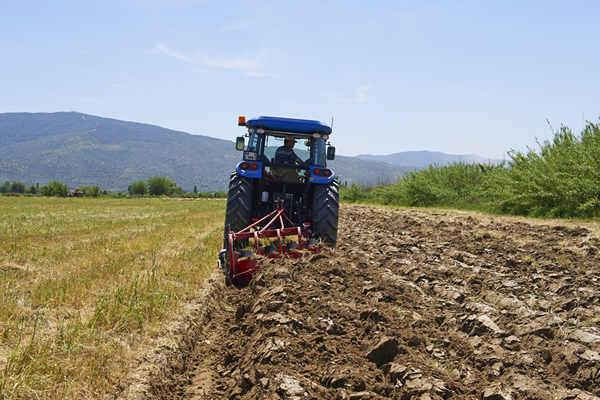

Conventional Plough

> Excellent plough-tractor balance.

> Simple and strong design for all land conditions.

> Big variety of working width choice for all tractor horse powers.

> Trash boards

> Mouldboard Extension

> Deflector

> Slatted Body

> Metal Depth Wheel

> Disc Coulters

> U-Shape Lower Connection Bar

> Shares with Reversible Points

> F, X and V Type Mouldboard

MODEL	SP07	SP08	SP09	SP10	SP11	SP12	SP13	SP14	SP16	SP18
Clearence (cm)	60	61	62	68	68	68	68	68	68	68
Distance Between Beams (cm)	60	60	64	70	74	76	77	78	81	84
Working Width (cm)	22	23,5	24,5	25,5	27,5	30	32,5	35	37,5	40
Working Depth (cm)	18	20	22	24	24	26	28	28	30	32
Weight (kg) 1	108	115	140	150	157	160	174	180	215	220
Weight (kg) 2	140	165	205	215	2212	223	238	244	280	308
Weight (kg) 3	198	225	287	318	326	335	345	360	417	485
Weight (kg) 4	310	347	433	488	505	518	525	538	603	715
Weight (kg) 5	375	440	547	610	627	647	665	675	770	890
Weight (kg) 6	435	520	670	760	770	800	810	810	830	926
Power Requirement (HP) 1	20-25	20-25	20-25	25-30	25-30	30-35	30-35	35-40	40-45	45-50
Power Requirement (HP) 2	20-25	20-25	30-40	30-40	30-40	40-50	40-50	40-50	50-60	60-70
Power Requirement (HP) 3	30-40	30-40	45-50	45-50	50-55	55-60	55-60	60-70	70-80	80-90
Power Requirement (HP) 4	35-40	40-50	50-60	70-80	70-85	70-85	70-85	80-90	80-90	90-100
Power Requirement (HP) 5	50-60	50-60	60-70	80-90	85-95	90-100	90-100	90-110	100-110	100-120
Power Requirement (HP) 6	60-70	65-75	70-80	80-90	90-110	95-115	105-120	110-125	125-135	135-150

When placing an order, add the number of furrows to the end of model code.
Upon the needs of customers we keep the right to make changes on the product specifications.
