| MODEL | Picker 80 | Picker 120 | Picker 168 |
|---|---|---|---|
| Capacity | 84 | 126 | 168 |
| Bale Loading | Automatic | Automatic | Automatic |
| Stowing On the Wagon | Automatic | Automatic | Automatic |
| Stowing On Ground | By Hydraulic Controller | By Hydraulic Controller | By Hydraulic Controller |
| Loading Time | 45 min | 55 min | 60 min |
| Tires | 2 | 2 | 4 |
| Tires Dimensions | 11,5-80/15,3 | 11,5-80/15,3 | 11,5-80/15,3 |
| Tandem Axle | Optional | Optional | Optional |
| PTO RPM | 540 T/M | 540 T/M | 540 T/M |
| Hydraulic Oil Depot | Standard | Standard | Standard |
| Suitable Bale Dimensions (Length) | 105-130 cm | 105-130 cm | 105-130 cm |
| Suitable Bale Dimensions (Width) | 36-46 cm | 36-46 cm | 36-46 cm |
| Bale Picker Width | Adjustable | Adjustable | Adjustable |
| Platform Width | Adjustable | Adjustable | Adjustable |
| Tractor Connection | By Pim | By Pim | By Pim |
| Traffic Lightings | Standard | Standard | Standard |
| Empty Weight | 4200 kg | 4800 kg | 5800 kg |
| Machine Length | 7850 mm | 8750 mm | 10300 mm |
| Machine Width (Transport) | 2620 mm | 2620 mm | 2620 mm |
| Machine Width (Working) | 3380 mm | 3380 mm | 3380 mm |
| Machine Height | 3600 mm | 4450 mm | 4450 mm |
| Stowing On Ground Height | 4000 mm | 6000 mm | 7200 mm |

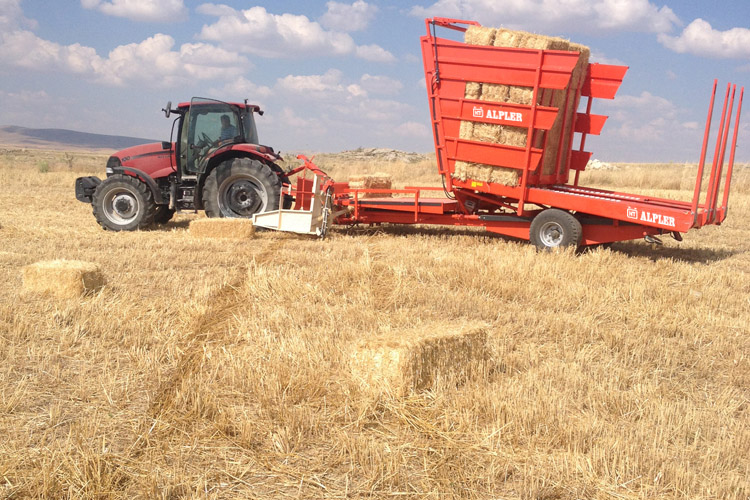

Bale Collecting Machine Brochure
