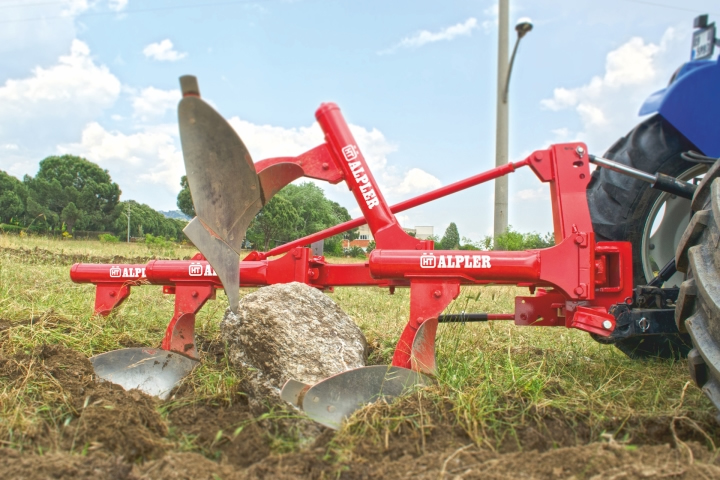

> Non-stop trouble free plowing opportunity for stony, rooted and first time plowed lands.
> The two helical springs lets the swing out bodies re-enter the soil immediately.
> The spring pressures can be easily adjusted for each body to different soil conditions in order to obtain optimum release characteristics.
> Flanged frame to add an extension, if required.
> Mechanical or Hydroulic working width adjustment (Optional).
> Trash boards.
> Shares with Reversible Points.
> Slatted Body.
> Wing Coulter.
> Metal Depth Wheel
> Bar Point Body.
> F, X and V Type Mouldboard
MODEL | OPB 123 | OPB 143 | OPB 124 | OPB 144 | OPB 125 | OPB 145 |
---|
Number of Furrows (pieces) | 3 | 3 | 4 | 4 | 5 | 5 |
Clearence (cm) | 75 | 75 | 75 | 75 | 75 | 75 |
Distance Between Beams (cm) | 75 | 80 | 75 | 80 | 75 | 80 |
Working Width (cm) | 25-30-35 | 30-35-40 | 25-30-35 | 30-35-40 | 25-30-35 | 30-35-40 |
Working Depth (cm) | 26 | 28 | 26 | 28 | 26 | 28 |
Weight (kg) | 670 | 680 | 832 | 851 | 1005 | 1014 |
Power Requirement (HP) | 50-60 | 60-70 | 70-90 | 80-100 | 90-110 | 100-120 |
Upon the needs of customers we keep the right to make changes on the product specifications.
